Descriptions: Field Excitation 2-way Dual Speaker Unit
Max input: 150W
Rated input: 30W
Frequency response: 25Hz~20,000Hz
Sensitivity: 104dB
Impedance: 8Ω
Crossover Frequency: 1,000Hz
Magnetic Flux Density(H.F): 20,000Gauss
Magnetic Flux Density(L.F): 16,000Gauss
H.F Driver V.C Diameter: Φ45mm
L.F Driver V.C Diameter: Φ76mm
Dimensions: Φ402 x Φ200 x 318H（mm）
Weight: 40kg
Exciting Voltage: 12~15vDC
DS701 pdf

- NEW RELEASE -

Descriptions: Field Excitation 2-way Dual Speaker Unit
Max input: 150W
Rated input: 30W
Frequency response: 25Hz~20,000Hz
Sensitivity: 106dB
Impedance: 8Ω
Crossover Frequency: 1,000Hz
Magnetic Flux Density(H.F): 20,000Gauss
Magnetic Flux Density(L.F): 16,000Gauss
H.F Driver V.C Diameter: Φ45mm
L.F Driver V.C Diameter: Φ76mm
Dimensions: Φ402 x Φ200 x 327H（mm）
Weight: 40kg
Exciting Voltage: 12~15vDC
DS703 pdf

Description: Field Excitation 38cm Woofer Unit
Max input: 150W
Rated input: 30W
Frequency response: 25Hz~2,000Hz
Sensitivity: 104dB
Impedance: 8Ω
Magnetic Flux Density: 16,000Gauss
V.C Diameter: Φ76mm
Dimensions: Φ402 x 200D(mm)
Weight: 25kg
Exciting Voltage: 12~15vDC

Description: Field Excitation Tear Drop Power Tweeter
Max input: 60W
Rated input: 30W
Frequency response: 3,000Hz~25kHz
Sensitivity: 110dB
Impedance: 8Ω
Magnetic Flux Density: 20,000Gauss
V.C Diameter: Φ45mm
Dimensions: Φ150 x 150D(mm)
Weight: 13kg
Exciting Voltage: 12~15vDC

Description: Field Excitation Compression Driver
Max input: 60W
Rated input: 30W
Frequency response: 400Hz~20kHz
Sensitivity: 108dB
Impedance: 8Ω
Magnetic Flux Density: 20,000Gauss
V.C Diameter: Φ45mm
Dimensions: Φ150 x 140D(mm)
Weight: 10kg
Exciting Voltage: 12~15vDC

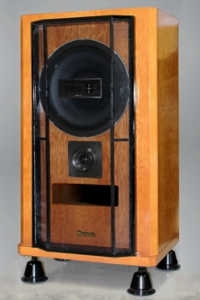

Description: DS701 Coaxial 2-way Field Excitation Driver + T501 Field Excitation Tweetr
Max input: 150W
Rated input: 30W
Frequency response: 25Hz~25,000Hz
Sensitivity: 104dB
Impedance: 8Ω
Crossover Frequency: 1,000Hz/7,000Hz (DN310)
Dimensions: 600W x 1120H x 480D mm
Weight: 110kg
tw1100.pdf

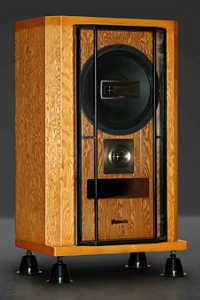

Description: DS703 Coaxial 2-way Field Excitation Driver + T501 Field Excitaion Tweeter
Max input: 150W
Rated input: 30W
Frequency response: 25Hz~25,000Hz
Sensitivity: 106dB
Impedance: 8Ω
Crossover Frequency: 1,000Hz/7,000Hz (DN330)
Dimensions: 650W x 1136H x 470D mm
Weight: 110kg
tw1300.pdf

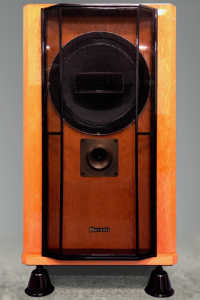

Open Back Enclosure Design
Descriptions: DS703 Coaxial 2-way Field Excitation Driver + T501 Field Excitation Tweeter
Max input: 150W
Rated input: 30W
Frequency response: 25Hz~25,000Hz
Sensitivity: 106dB
Impedance: 8Ω
Crossover Frequency: 1,000Hz/7,000Hz (DN330)
Dimensions: 600W x 1125H x 440D mm
Weight: 110kg
tw1500e.pdf

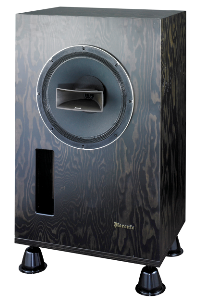

Descriptions: DS701 Coaxial 2-way Linear Phase Field Excitation Driver
Max input: 150W
Rated input: 30W
Frequency response: 25Hz~20,000Hz
Sensitivity: 104dB
Impedance: 8Ω
Dimensions: 600W x 1080H x 445D mm
Weight: 110kg

Plug part: Gold-Plated Brass
Rotating part: Brass
Type: RCA Collet chucks
Insulator: Teflon
Covering material: Silk & Cotton (Plant dyeing)
Cable length: ～1.0m / 1.1～1.5m
miyabi.pdf

Wire material: Tough Pitch Copper / 2.7sq.（0.7sq. × 7pcs. Twisted ）
Core wire covering: Silk winding
Outer covering: Braided cotton & Cotton string
Staining: Plant dyeing
Length: 2.5m / 3.7m / 5.0m
Hibiki.pdf

・Opus Clean（for Vinyl Disc）
・Opus Clean FX（for CD / DVD / BR）
・Opus Clean EX（for Vinyl Disc）
OpusClean.pdf
