Concert Fidelity

RESOLUTION SERIES

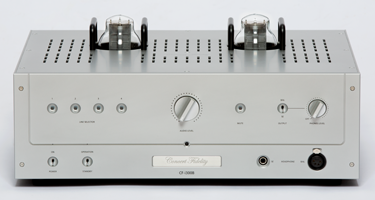

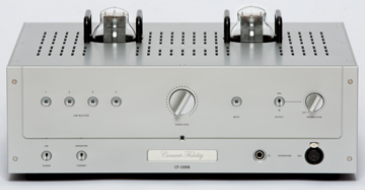

CF-i300B Integrated amplifier

The CF-i300B is an all-tube integrated amplifier featuring a pair of the 300B output tube driven by a pair of 6SJ7/6SJ7GT/5693. Rectification is handled by a 5AR4/GZ34. The directly heated triode amp outputs 9 watts/8ohm per channel. The circuit topology is extremely simple and signal paths are short.
The CF-i300B has four sets of single-ended inputs and one of them can be switched
to balanced (XLR). Users can select the speaker output impedance between 4 ohm and 8 ohm. As a bonus, it has a solid-state headphone amp which can drive either pair of a single-ended or balanced headphones.

-Specification-
Inputs: INPUT 1-3 Line Level Inputs (RCA), INPUT 4 Line Level Input (RCA, XLR swithed)
Input Impedance: 100kohm (RCA single-ended), 600ohm (XLR balanced)
Speaker Outputs: 0-4ohm-8ohm
Tube Complement: 300B (2) for Output, 6SJ7/6SJ7GT/5693 (2) for Driver, 5AR4/GZ34 (1) for rectification
Power Reqiremants: (100VAC / 50~60Hz), 110-120VAC / 60Hz, (220-230VAC / 50Hz), (240VAC / 50Hz)
Dimensions: 450mm (W) X 140mm (H) X 310mm (D)
Net Weight: 20kg
Price: Please ask a dealer
More Information

CLS-050 Line stage

-Coming Soon-

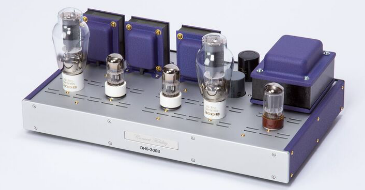

DHS-300B Single ended Power amplifier (Royal Purple Collection)

The DHS-300B is an all-tube power amplifier featuring a pair of the WEC 300B type output tube driven by a pair of 6SJ7/6SJ7GT/5693. Rectification is handled by a 5AR4/GZ34. The directly heated triode amp outputs 9 watts/8ohm per channel.

-Specification-
Inputs: Line Level Inputs (RCA single-ended)
Input Impedance: 220kohm (RCA single-ended)
Speaker Outputs: 0-4ohm-8ohm
Gain:
Tube Complement: 300B (2) for Output, 6SJ7/6SJ7GT/5693 (2) for Driver, 5AR4/GZ34 (1) for rectification
Power Reqiremants: (100VAC / 50~60Hz), 110-120VAC / 60Hz, (220-230VAC / 50Hz), (240VAC / 50Hz)
Dimensions: 450mm (W) X 140mm (H) X 260mm (D)
Net Weight:
Price: Please ask a dealer

DHP-300B Push pull Power amplifier

-Coming Soon-
